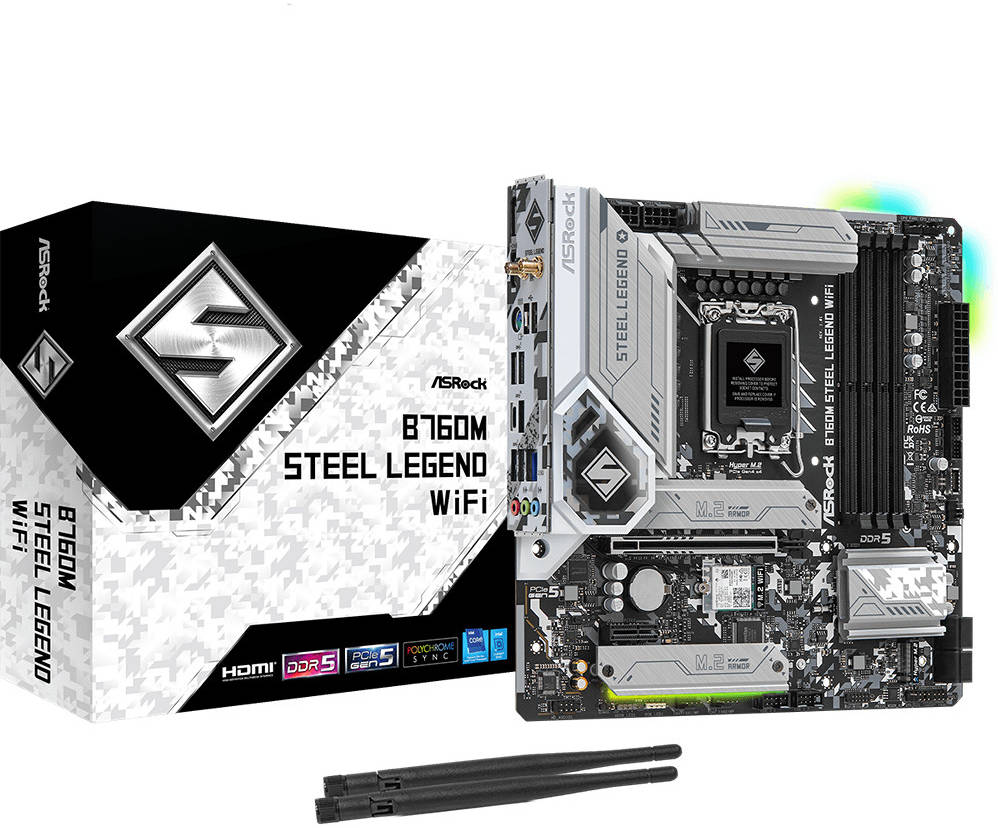

ASRock B760M Steel Legend WiFi Motherboard, Micro ATX Form Factor, LGA1700 Socket, Intel B760 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory Support, Wi-Fi 6E, Bluetooth 5.3

The ASRock B760M Steel Legend WiFi is a premium micro-ATX motherboard built around Intel’s B760 chipset, designed for 12th, 13th, and 14th Generation Intel Core processors using the LGA1700 socket. It balances strong features, modern connectivity, and an attractive white/silver aesthetic aimed at gaming and productivity PCs.

Key Specifications

• Chipset: Intel B760
• Socket: LGA1700
• CPU Support: Intel 12th, 13th, and 14th Gen Core processors
• Form Factor: Micro-ATX
• Memory: 4× DDR5 slots, up to 256 GB, speeds up to DDR5-7200+ (OC)
• Power Delivery: 12+1+1 Dr.MOS power phase design
• Expansion Slots:
  • 1× PCIe 5.0 x16
  • 1× PCIe 4.0 x1
• Storage:
  • 3× M.2 PCIe 4.0 x4 slots
  • 4× SATA III ports
• Networking:
  • 2.5 Gigabit Ethernet
  • Wi-Fi 6E
  • Bluetooth 5.3
• Audio: Realtek ALC897 7.1-channel audio with Nahimic support

Connectivity

• USB 3.2 Gen2 Type-C (front and rear)
• USB 3.2 Gen2 Type-A
• Multiple USB 3.2 Gen1 and USB 2.0 ports
• HDMI 2.1 and DisplayPort 1.4 video outputs (usable only with CPUs that include integrated graphics)

Pairing with Intel Core i7-14700F

This motherboard is an excellent match for the Intel Core i7-14700F:

• Fully supports the CPU.
• Strong VRM design can comfortably handle the i7-14700F’s power demands.
• DDR5 support allows high-performance memory kits (6000–7200 MT/s).
• Wi-Fi 6E and 2.5GbE provide modern networking.
• PCIe 5.0 x16 supports the latest graphics cards
